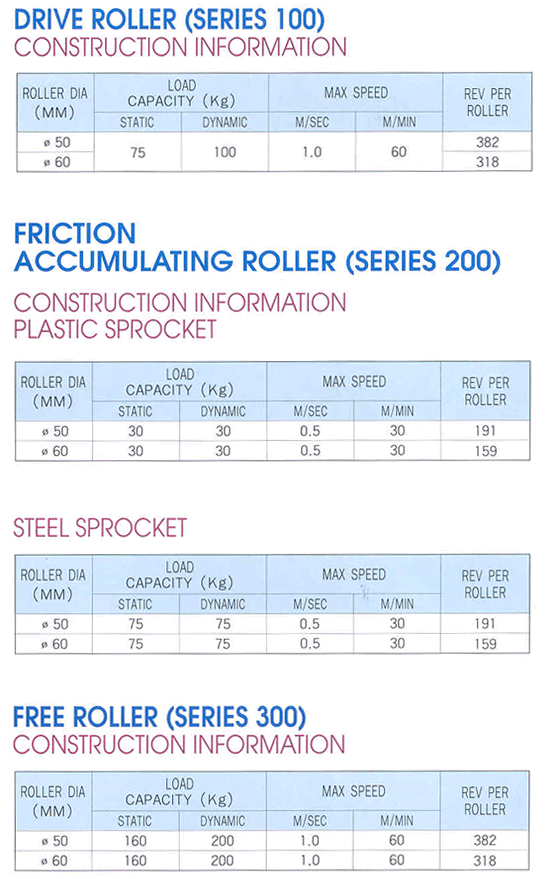

DRIVE ROLLER (SERIES 100)
CONSTRUCTION INFORMATION
| ROLLER DIA (mm) |
LOAD CAPACITY (kg) | MAX SPEED | REV PER ROLLER |
||
| STATIC | DYNAMIC | M/SEC | M/MIN | ||
| 50 | 75 | 100 | 1.0 | 60 | 382 |
| 60 | 318 | ||||
Friction
Accumulating Roller (SERIES 200)
| ROLLER DIA (mm) |
LOAD CAPACITY (kg) | MAX SPEED | REV PER ROLLER |
||
| STATIC | DYNAMIC | M/SEC | M/MIN | ||
| 50 | 30 | 30 | 0.5 | 30 | 191 |
| 60 | 159 | ||||
Still Sprocket
| ROLLER DIA (mm) |
LOAD CAPACITY (kg) | MAX SPEED | REV PER ROLLER |
||
| STATIC | DYNAMIC | M/SEC | M/MIN | ||
| 50 | 75 | 75 | 0.5 | 30 | 191 |
| 60 | 159 | ||||
Free Roller (SERIES 300)
CONSTRUCTION INFORMATION
| ROLLER DIA (mm) |
LOAD CAPACITY (kg) | MAX SPEED | REV PER ROLLER |
||
| STATIC | DYNAMIC | M/SEC | M/MIN | ||
| 50 | 160 | 200 | 1.0 | 60 | 382 |
| 60 | 318 | ||||
